AEROTIGHT NUTS
We supply aerotight nuts in the following materials:

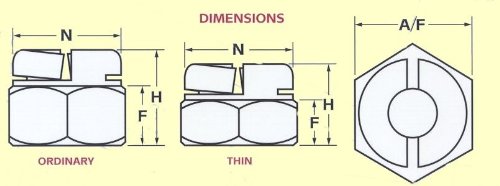

Dimensions for Aerotight nuts
| Diameter | Pitch | A/F | N | H | F(ordinary) |
|---|---|---|---|---|---|
| M2.5 | 0.45mm | 5.0mm | 4.75mm | 2.97mm | 1.49mm |
| M3 | 0.5mm | 5.5mm | 5.25mm | 3.52mm | 1.89mm |
| M3.5 | 0.65mm | 7.0mm | 6.65mm | 4.79mm | 2.69mm |
| M4 | 0.7mm | 7.0mm | 6.65mm | 4.79mm | 2.69mm |
| M5 | 0.8mm | 8.0mm | 7.65mm | 6.02mm | 3.49mm |
| M6 | 1.0mm | 10.0mm | 9.58mm | 7.95mm | 4.63mm |
| M8 | 1.25mm | 13.0mm | 12.62mm | 10.05mm | 5.87mm |
| M10 | 1.5mm | 17.0mm | 16.53mm | 12.03mm | 7.62mm |
| M12 | 1.75mm | 19.0mm | 18.47mm | 14.48mm | 9.62mm |
| M16 | 2.0mm | 24.0mm | 23.47mm | 18.75mm | 12.62mm |
| M20 | 2.5mm | 30.0mm | 29.47mm | 22.35mm | 15.62mm |
| M24 | 3.0mm | 36.0mm | 35.18mm | 26.85mm | 18.62mm |
