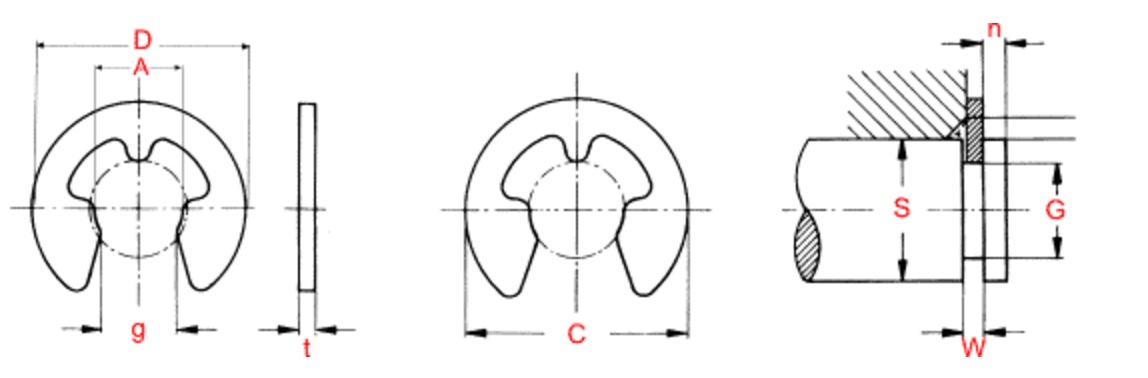

E CLIP
Dimensions for Metric E clips
| Shaft |
Circlip |
Circlip |
Circlip |
Circlip |
Groove |
Groove |
Groove |
| S |
t |
D |
C |
g |
G |
W |
n |
| 1.2 |
0.2 |
1.95 |
2.25 |
0.58 |
0.8 |
0.24 |
0.4 |
| 1.7 |
0.3 |
2.9 |
3.25 |
1.01 |
1.2 |
0.34 |
0.6 |
| 2.25 |
0.4 |
3.85 |
4.25 |
1.28 |
1.5 |
0.44 |
0.8 |
| 2.75 |
0.5 |
4.4 |
4.8 |
1.61 |
1.9 |
0.54 |
1.0 |
| 2.75 |
0.5 |
4.4 |
4.8 |
1.61 |
1.9 |
0.54 |
1.0 |
| 3.5 |
0.6 |
5.9 |
6.3 |
1.94 |
2.3 |
0.64 |
1.0 |
| 4.5 |
0.6 |
6.8 |
7.3 |
2.7 |
3.2 |
0.64 |
1.0 |
| 6.0 |
0.7 |
8.8 |
9.3 |
3.34 |
4.0 |
0.74 |
1.2 |
| 7.0 |
0.7 |
10.75 |
11.3 |
4.11 |
5.0 |
0.74 |
1.2 |
| 8.0 |
0.7 |
11.75 |
12.3 |
5.26 |
6.0 |
0.74 |
1.2 |
| 9.5 |
0.9 |
13.8 |
14.3 |
5.84 |
7.0 |
0.94 |
1.5 |
| Shaft |
Circlip |
Circlip |
Circlip |
Circlip |
Groove |
Groove |
Groove |
| 10.5 |
1.0 |
15.6 |
16.3 |
6.52 |
8.0 |
1.05 |
1.8 |
| 12.0 |
1.1 |
18.2 |
18.8 |
7.63 |
9.0 |
1.15 |
2.0 |
| 13.0 |
1.2 |
19.65 |
20.4 |
8.32 |
10.0 |
1.25 |
2.0 |
| 15.5 |
1.3 |
22.65 |
23.4 |
10.45 |
12.0 |
1.35 |
2.5 |
| 20.0 |
1.5 |
28.6 |
29.4 |
12.61 |
15.0 |
1.55 |
3.0 |
| 25.5 |
1.75 |
36.7 |
37.6 |
15.92 |
19.0 |
1.8 |
3.5 |
| 31.5 |
2.0 |
43.65 |
44.6 |
21.88 |
24.0 |
2.05 |
4.0 |
