PHILIDAS NUTS

Philidas are the leading a leading all metal self locking nut manufacturer in the UK. Their plant in Pontefract houses coldforging and bar turning facilities enabling small, medium and large batch production runs supplied through a distributor network to the industrial and automotive markets. Also onsite they have a fully equipped toolroom using the latest technology with 3D CAD and forging simulation for the design of all machine tooling. Philidas produce both their standard range and specials in grades 8, 10 & 12. Subject to MOQ's brass and aluminium items can also supplied.

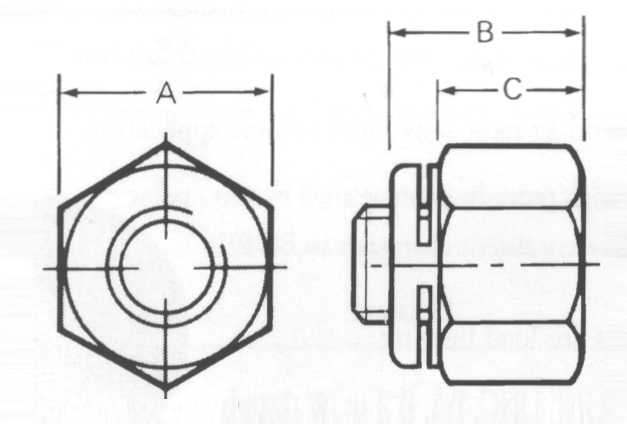

Diameter	Order Reference	A a/f	B	C
M5	5 MCI	8.0mm	6.5mm	4.3mm
M6	6 MCI	10.0mm	7.5mm	5.0mm
M8	8 MCI	13.0mm	8.5mm	5.7mm
M10	10 MCI	17.0mm	11.0mm	8.0mm
M12	12 MCI	19.0mm	13.0mm	9.5mm
M14	14 MCI	22.0mm	15.0mm	11.0mm
M16	16 MCI	24.0mm	17.0mm	12.8mm
M18	18 MCI	27.0mm	20.0mm	15.5mm
M20	20 MCI	30.0mm	22.0mm	17.5mm
M22	22 MCI	32.0mm	23.0mm	18.0mm
M24	24 MCI	36.0mm	25.0mm	19.5mm
M27	27 MCI	41.0mm	28.0mm	22.0mm
M30	30 MCI	46.0mm	31.0mm	24.5mm
M33	33 MCI	50.0mm	33.0mm	26.2mm
M36	36 MCI	55.0mm	36.0mm	28.6mm
M39	39 MCI	60.0mm	39.0mm	31.1mm
M42	42 MCI	65.0mm	42.0mm	33.5mm
M45	45 MCI	70.0mm	45.0mm	36.0mm
M48	48 MCI	75.0mm	48.0mm	38.0mm
M52	52 MCI	80.0mm	52.0mm	41.5mm

Diameter

Order Reference

A a/f

5 MCI

8.0mm

6.5mm

4.3mm

6 MCI

10.0mm

7.5mm

5.0mm

8 MCI

13.0mm

8.5mm

5.7mm

M10

10 MCI

17.0mm

11.0mm

8.0mm

M12

12 MCI

19.0mm

13.0mm

9.5mm

M14

14 MCI

22.0mm

15.0mm

11.0mm

M16

16 MCI

24.0mm

17.0mm

12.8mm

M18

18 MCI

27.0mm

20.0mm

15.5mm

M20

20 MCI

30.0mm

22.0mm

17.5mm

M22

22 MCI

32.0mm

23.0mm

18.0mm

M24

24 MCI

36.0mm

25.0mm

19.5mm

M27

27 MCI

41.0mm

28.0mm

22.0mm

M30

30 MCI

46.0mm

31.0mm

24.5mm

M33

33 MCI

50.0mm

33.0mm

26.2mm

M36

36 MCI

55.0mm

36.0mm

28.6mm

M39

39 MCI

60.0mm

39.0mm

31.1mm

M42

42 MCI

65.0mm

42.0mm

33.5mm

M45

45 MCI

70.0mm

45.0mm

36.0mm

M48

48 MCI

75.0mm

48.0mm

38.0mm

M52

52 MCI

80.0mm

52.0mm

41.5mm

Diameter	Order Reference	A a/f	B	C
M2.5	2.5 MCP	5.0mm	4.5mm	2.4mm
M3	3 MCP	5.5mm	4.75mm	2.45mm
M3.5	3.5 MCP	7.0mm	5.0mm	2.5mm
M4	4 MCP	7.0mm	5.6mm	3.3mm
M5	5 MCP	8.0mm	6.8mm	3.9mm
M6	6 MCP	10.0mm	8.5mm	5.0mm
M8	8 MCP	13.0mm	10.5mm	6.0mm
M10	10 MCP	17.0mm	13.0mm	7.6mm
M12	12 MCP	19.0mm	15.0mm	8.5mm
M14	14 MCP	22.0mm	17.0mm	10.0mm
M16	16 MCP	24.0mm	19.5mm	12.0mm
M18	18 MCP	27.0mm	20.0mm	14.0mm
M20	20 MCP	30.0mm	24.0mm	15.5mm
M22	22 MCP	32.0mm	26.5mm	17.5mm
M24	24 MCP	36.0mm	29.0mm	19.0mm
M27	27 MCP	41.0mm	33.0mm	22.0mm
M30	30 MCP	46.0mm	39.0mm	26.0mm
M33	33 MCP	50.0mm	43.0mm	30.0mm
M36	36 MCP	55.0mm	47.0mm	32.5mm
M39	39 MCP	60.0mm	50.0mm	35.0mm
M42	42 MCP	65.0mm	54.0mm	37.5mm
M45	45 MCP	70.0mm	58.0mm	41.0mm
M48	48 MCI	75.0mm	62.0mm	42.5mm
M52	52 MCP	80.0mm	67.0mm	46.5mm

Diameter

Order Reference

A a/f

M2.5

2.5 MCP

5.0mm

4.5mm

2.4mm

3 MCP

5.5mm

4.75mm

2.45mm

M3.5

3.5 MCP

7.0mm

5.0mm

2.5mm

4 MCP

7.0mm

5.6mm

3.3mm

5 MCP

8.0mm

6.8mm

3.9mm

6 MCP

10.0mm

8.5mm

5.0mm

8 MCP

13.0mm

10.5mm

6.0mm

M10

10 MCP

17.0mm

13.0mm

7.6mm

M12

12 MCP

19.0mm

15.0mm

8.5mm

M14

14 MCP

22.0mm

17.0mm

10.0mm

M16

16 MCP

24.0mm

19.5mm

12.0mm

M18

18 MCP

27.0mm

20.0mm

14.0mm

M20

20 MCP

30.0mm

24.0mm

15.5mm

M22

22 MCP

32.0mm

26.5mm

17.5mm

M24

24 MCP

36.0mm

29.0mm

19.0mm

M27

27 MCP

41.0mm

33.0mm

22.0mm

M30

30 MCP

46.0mm

39.0mm

26.0mm

M33

33 MCP

50.0mm

43.0mm

30.0mm

M36

36 MCP

55.0mm

47.0mm

32.5mm

M39

39 MCP

60.0mm

50.0mm

35.0mm

M42

42 MCP

65.0mm

54.0mm

37.5mm

M45

45 MCP

70.0mm

58.0mm

41.0mm

M48

48 MCI

75.0mm

62.0mm

42.5mm

M52

52 MCP

80.0mm

67.0mm

46.5mm
