U BOLTS STANDARD LEG

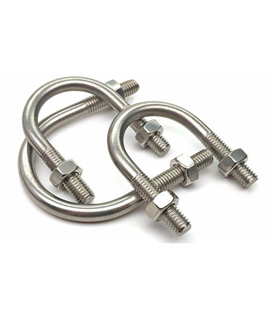

Our standard U-bolts are crafted from high-quality mild or stainless steel, precision-shaped for secure fastening. Commonly used to attach pipes, round bars, or posts—and even as anchor bolts in concrete—they are available in zinc-plated or stainless finishes, with sizes ranging from M6 to M20. We also offer custom dimensions, materials, and finishes to meet specific project requirements.
THE DIMENSION GIVEN FOR U–BOLTS IS THE NOMINAL BORE (N.B.) OF THE PIPE. THE ACTUAL
DISTANCE BETWEEN THE LEGS IS GREATER THAN THIS TO ALLOW FOR THE WALL THICKNESS OF THE PIPE. ALL OUR U–BOLTS
ARE SUPPLIED WITH TWO HEX NUTS TO SUIT

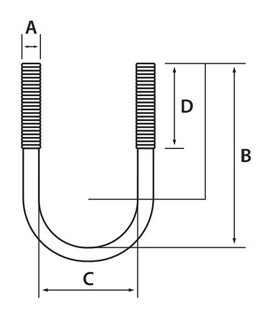

| NB MM | NB NICHES | A MM | B MM | C MM | D MM |
|---|---|---|---|---|---|
| 20MM | 3/4IN | 27 | 53 | 30 | M6 |
| 25MM | 1IN | 36 | 60 | 30 | M6 |
| 32MM | 11/4IN | 45 | 70 | 40 | M10 |
| 40MM | 11/2IN | 51 | 75 | 40 | M10 |
| 50MM | 2IN | 60 | 85 | 40 | M10 |
| 65MM | 21/2IN | 76 | 100 | 40 | M10 |
| 80MM | 3IN | 90 | 115 | 40 | M12 |
| 100MM | 4IN | 114 | 140 | 40 | M12 |
| 125MM | 5IN | 140 | 165 | 40 | M12 |
| 150MM | 6IN | 170 | 200 | 50 | M12 |
